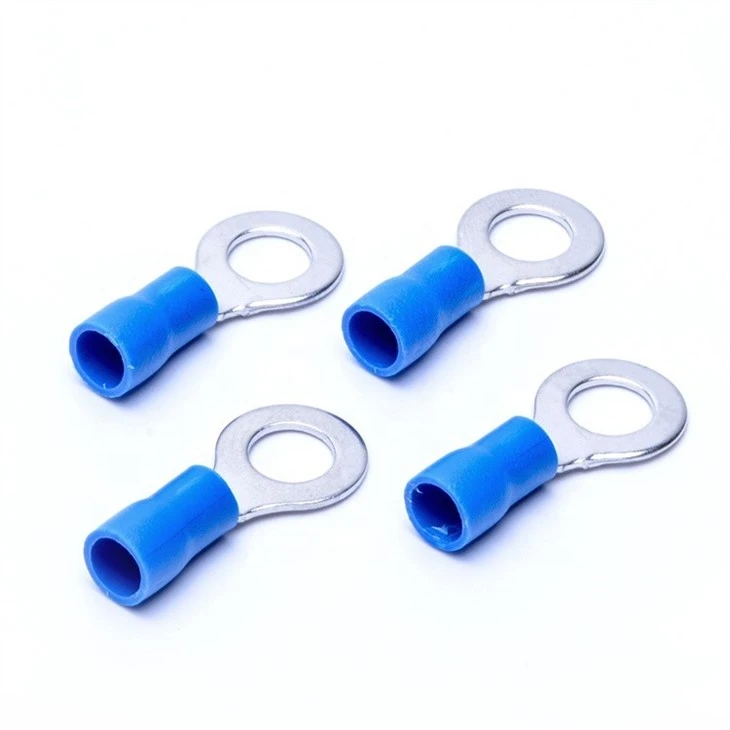

Tooj Nplhaib Lugs Insulated
Kev piav qhia
Peb lub nplhaib tooj liab Insulated yog cov khoom tseem ceeb ntawm ntau lub tshuab hluav taws xob, feem ntau yog siv rau kev sib txuas cables. Lawv yog ua los ntawm cov khoom thiab ruaj khov tooj liab alloy, nrog rau cov tshuaj lom neeg ruaj khov thiab ua haujlwm ntev, thiab yuav tsis ua rau muaj kev phom sij rau hluav taws thaum siv. Tsis tas li ntawd, lawv muaj kev tiv thaiv qis thiab qis oxidation dua li lwm cov hlau, ua rau lawv cov conductors zoo heev.
Nta
Cov Copper Ring Lugs Insulated no yog ua los ntawm annealed electrolytic qib tooj liab rau siab tshaj plaws conductivity. Lawv cov tinned nto muaj kev tiv thaiv corrosion, uas tuaj yeem pab koj ua tiav crimping lossis vuam ua haujlwm yooj yim, thiab xav tau kev saib xyuas tsawg dua hauv kev siv tom ntej. Tsis tas li ntawd, lawv siv cov qauv hnyav terminals, uas tsis tsuas yog xyuas kom ntseeg tau kev sib txuas, tab sis kuj pab txhawb kev xaim xaim.
Paub meej
Terminal Khoom: | Tooj |
Plating: | Electro tin plated |
Cov khoom siv rwb thaiv tsev: | PVC, PA |
Hom: | RV |
Feature: | Fixable, zoo elasticity, tsis tuaj yeem tawg, siab ntev |
Daim ntawv pov thawj: | RoHS, CE, UL |
Daim ntawv thov: | Hluav taws xob, kev sib txuas lus, tshuab, kev tsim kho, roj av, tshuaj lom neeg, aviation, tsheb thauj mus los, railway, tsheb thauj mus los, kev tsim tsheb, khoom siv hauv tsev, khoom siv hluav taws xob, khoos phis tawj thiab lwm yam. |
Feature: | 1.Fireproof, insulate, yooj yim siv |
2.Ua los ntawm siab purity tooj liab | |
Xim: | Liab, xiav, dub, daj |
Muaj nuj nqi: | Hluav taws xob conductive thiab kev sib txuas |
Ua haujlwm kub: | -40 degree -105 degree |
MAXIMUM ELECTRIC CURRENT:
A.W.G. | 22 | 20 | 18 | 16 | 14 | 12 | 10 | 8 | 6 | 4 | 2 | 1/0 | 2/0 | 3/0 | 4/0 | 250 | 300 | 350 | 400 | 500 | 600 |
AMP. | 9 | 12 | 17 | 18 | 30 | 35 | 50 | 70 | 95 | 125 | 170 | 230 | 265 | 310 | 360 | 405 | 445 | 505 | 545 | 620 | 690 |
Specification
Cable Loj: 0.5-1.5mm2(AWG22-16) Max tam sim no: Imax=19A | ||||||||
Khoom siv: Copper Khoom Thickness: 0.75mm | ||||||||
| Yam khoom No | USA ntsia hlau | Stud loj mm | Qhov Loj (mm) | Xim | ||||
B | L | F | H | D∅ | ||||
RV1. 25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 | Liab |
RVS1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||
RVM1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | |||
RVL1.25-3.5 | #6 | 4.3 | 8.0 | 21.5 | 7.0 | |||
RVS1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | |||
RVL1.25-4 | #8 | 4.3 | 8.0 | 21.5 | 7.0 | |||
RV1. 25-5 | #10 | 5.3 | 8.0 | 21.5 | 7.0 | |||
RVL1.25-5 | #10 | 5.3 | 9.8 | 23.0 | 8.5 | |||
RV1. 25-6 | 1/4 | 6.4 | 11.6 | 27.5 | 11.1 | |||
RV1. 25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||
RV1. 25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | |||
RV1. 25-12 | 1/2 | 13.0 | 19.2 | 36.0 | 16.5 | |||
Cable Loj: 1.5-2.5mm2(AWG16-14) Max tam sim no: Imax=27A Material: Copper Material Thickness:0.8mm | ||||||||
RV 2-3 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Xiav |
RVS2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | |||
RVM2-3.5 | #6 | 3.7 | 8.5 | 21.0 | 7.0 | |||
RVL2-3.5 | #6 | 3.7 | 6.6 | 22.5 | 7.75 | |||
RVS2-4 | #8 | 4.3 | 8.5 | 21.0 | 7.0 | |||
RVL2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | |||
RVS2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | |||
RVL2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||
RV 2-6 | 1/4 | 6.4 | 12.0 | 27.6 | 11.0 | |||
RV 2-8 | 5/16 | 8.4 | 12.0 | 27.6 | 11.0 | |||
RV 2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | |||
RV 2-12 | 1/2 | 13.0 | 19.2 | 35.4 | 16.5 | |||
Cable Loj: 2.5-4mm2(AWG14-12) Max tam sim no: Imax=37A Material: Copper Material Thickness:1.0mm | ||||||||
RV3. 5-4 | #8 | 4.3 | 8 | 24.5 | 7.7 | 13.0 | 6.2 | Dub |
RVS3.5-5 | #10 | 5.3 | 8 | 24.5 | 7.7 | |||
RVL3.5-5 | #10 | 5.3 | 12 | 27.9 | 7.7 | |||
RV3. 5-6 | 1/4 | 6.4 | 12 | 27.9 | 7.7 | |||
Cable Loj: {{0}}mm2(AWG12-10) Max tam sim no: Imax=48A Material: Copper Material Thickness: 1.0mm | ||||||||
RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 13.0 | 6.7 | Daj |
RVS5.5-4 | #8 | 4.3 | 7.2 | 21.4 | 5.9 | |||
RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-6 | 1/4 | 6.4 | 12.0 | 31.5 | 13.0 | |||
RV5.5-8 | 5/16 | 8.4 | 15.0 | 33.7 | 13.7 | |||
RV5.5-10 | 3/8 | 10.5 | 15.0 | 33.7 | 13.7 | |||
RV5.5-12 | 1/2 | 13.0 | 19.2 | 38.1 | 16.0 | |||
FAQ
1. Q: Koj puas tuaj yeem qhia kuv ntxiv txog koj lub tuam txhab?
A: Peb yog cov kws tshaj lij cable Hoobkas hauv Suav teb, nrog yuav luag 10 xyoo kev paub hauv kev lag luam cable. peb muaj pab pawg engineers muaj zog, tuaj yeem muab kev txhawb nqa rau cov neeg siv khoom.
2, Q: Koj puas tuaj yeem tsim kev cai cable sib dhos?
A: Peb tuaj yeem tsim thiab tsim cov khoom sib txuas / cable sib dhos rau cov neeg siv khoom, txawm tias tuaj yeem ntxiv koj lub logo rau ntawm cov khoom.
3, Q: Koj qhov kev txiav txim yam tsawg kawg nkaus QTY (MOQ) yog dab tsi?
A: Feem ntau 500 PCS, tab sis peb tuaj yeem txhawb qis ntim rau cov qauv theem.
4, Q: Lub sijhawm ua haujlwm (L / T) ntawm koj qhov kev tsim khoom yog dab tsi?
A: Peb muab kev pabcuam luv luv L / T. Qauv 1 wks, loj ntau lawm 4 wks.
5, Q: Vim li cas thiaj xaiv peb? Koj qhov txiaj ntsig yog dab tsi?
A: Peb yog cov kws tshaj lij cable Hoobkas hauv Suav teb, nrog yuav luag 10 xyoo kev paub hauv kev lag luam cable. peb muaj pab pawg engineers muaj zog, tuaj yeem muab kev txhawb nqa rau cov neeg siv khoom.
Cov khoom zoo: Cov khoom siv raw khoom zoo
Competitive nqi: Hoobkas nqi
Kev pabcuam OEM: Muab thiab txais tos OEM kev pabcuam
Kev pabcuam xav tau: Cov lus teb ceev ceev hauv 24 teev
Lub sijhawm xa khoom sai: Kev npaj tsim khoom nruj thiab hnub xa khoom.
6, Q: Ua li cas txog koj cov khoom zoo?
A: Peb ua cov kev sim rub tawm, khoov kuaj thiab lwm yam kom ntseeg tau tias cov khoom ruaj khov, kuj ua 100 feem pua kev ua haujlwm ntawm cov kab hauv kev tsim khoom kom ntseeg tau tias cov neeg tau txais cov khoom zoo.
Lub sij hawm shipping:
Peb xa khoom thoob plaws lo lus, ntawm EMS, DHL, UPS.FedEx thiab TNT thiab lwm yam, cov neeg siv khoom tuaj yeem qhia qhov twg lawv nyiam.
Ntim
1, txheem export thawv.
2, customized packing kuj txais tos.
Kev xa khoom
1, 5 hnub ua haujlwm rau cov qauv.
2, 7 hnub ua haujlwm rau cov khoom tsim khoom loj.
3, Kev nthuav qhia, huab cua, dej hiav txwv thiab cov neeg siv khoom tau teev tseg rau pem hauv ntej muaj.
