Xim Ribbon Cable

Xim ribbon cable luv luv

Cov xim ribbon cable yog sib txuas los ntawm ntau cov xim sib txawv, hlau spec yuav yog UL 1007/1569/1015 lossis lwm yam UL xov hlau, xim tuaj yeem teev los ntawm cov neeg siv khoom. Hlau yog yoog raws, thiab sib koom ua ke kom yooj yim rau kev tswj hwm hauv lub thawv tsev, thiab IDC calble ua rau cov neeg siv khoom ntsaws quivkly thaum sib dhos, kuj yooj yim los hloov lossis kho.



Colr ribbon cable Txheej txheem cej luam



Connector: IDC connector, txhua hom khoom uas tau teev tseg los ntawm cov neeg siv khoom, lossis peb xav kom pheej yig dua connector

Pin naj npawb: 2 pin -40pin

Cable: ccolor ribbon cable (xim hlau bonded cable)

Voltage ntsuam xyuas: customized

Cable ntev: customized

UL style: 2651, 2468, 1007 thiab lwm yam.

Kev ntsuas kub: -40 txog 105 degree

Txuj: IPC-A-620/UL

Ntawv pov thawj: RoHS/REACH/UL/CAS/VDE/CE

Kev pabcuam ntxiv: OEM / ODM

Rated voltage: 300v

Nplaim hluav taws xob theem: VW-1 & FT1 Ntsig nplaim taws kuaj





Daim ntawv qhia:

AWM 1007
Tus coj			Rwb thaiv tsev
AWG	Kev tsim kho (No./mm)	Dia. (mm)	Thickness (mm)	O.D. (mm)
26	1/0.404	0.40	0.43	1.25
	7/0.16	0.48	0.41	1.30
24	1/0.511	0.51	0.42	1.35
	11/0.16	0.61	0.40	1.40
22	1/0.643	0.64	0.43	1.50
	17/0.16	0.76	0.42	1.60

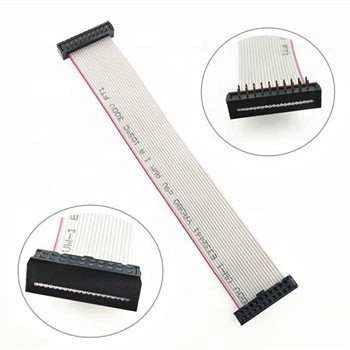

Haum connector: IDC connector los yog lwm yam crimping davhlau ya nyob twg connectors











Daim ntawv thov:

• Consumer Electronics: Zoo tagnrho rau cov ntawv thov hauv smartphones, ntsiav tshuaj, laptops, thiab lwm yam khoom siv nqa tau.

• Automotive: Ua kom ntseeg tau kev sib txuas hauv tsheb infotainment systems, tswj vaj huam sib luag, thiab sensors.

• Cov Khoom Siv Khoom Siv: Siv nyob rau hauv robotics, Hoobkas automation, thiab machinery.

• Cov Khoom Siv Kho Mob: Muab kev hloov pauv hauv cov khoom siv kho mob uas qhov chaw thiab kev ntseeg siab yog qhov tseem ceeb.



Qhov sib txawv ntawm cov xim ribbon cable thiab grey ribbon cable:

1, Txheej txheem ntawm Grey thiab Xim Cable
Grey xaim thiab xim xaim yog ob qho tib si hauv cov kab hluav taws xob hauv cable, tab sis lawv muaj lub hom phiaj sib txawv thiab cov lus qhia tshwj xeeb. Grey ribbon cables feem ntau yog siv los xa cov teeb liab tsawg zaus, thaum xim ribbon cables yog siv los xa cov teeb liab ntau zaus, xws li cov teeb liab video.
2, Cable xim
Grey cables feem ntau yog them nrog grey lossis tsaus grey cables, thaum cov kab xim xim raug cais raws li qee qhov kev cai siv cov xim sib txawv xws li daj, liab, xiav, thiab lwm yam.
3, Lub Hom Phiaj:
Grey ribbon cables feem ntau yog siv rau kev xa cov teeb liab tsawg zaus, xws li cov teeb liab suab, cov teeb liab tswj, thiab lwm yam. Lawv tsuas yog siv rau theem suab, suab hauv tsev thiab yees duab, tswj teeb pom kev zoo thiab lwm yam. Xim ribbon cables yog dav siv rau cov teeb liab kis tau tus mob ntawm cov khoom siv video, xws li cov koob yees duab digital, cov lus qhia, projectors, thiab lwm yam.
4, Specifications
Cov specifications ntawm grey ribbon cables feem ntau yog 2-core, 3-core, 5-core, thiab lwm yam, nrog tsawg cores, tsau rwb thaiv tsev txheej, thiab kuj yooj yim plug duab; Cov kev qhia tshwj xeeb ntawm cov xim ribbon cables muaj ntau haiv neeg, suav nrog 2-core, 3-core, 4-core, 5-core, 6-core, 10 core, thiab lwm yam . Lawv muaj ntau cov cores, ntau cov duab plugs, thiab ntau yam kev siv.
5, Tiv tauj peb
Txawm hais tias muaj qhov sib txawv ntawm kev siv, kev qhia tshwj xeeb, xim xim, thiab lwm yam ntawm cov xim grey thiab xim, lawv kuj muaj kev sib txuas. Piv txwv li, thaum txuas qee cov khoom siv, nws yog ib qho tsim nyog yuav tsum tau xa ob qho tib si qis thiab cov teeb liab siab ib txhij. Nyob rau hauv cov ntaub ntawv no, grey thiab xim ribbon cables yog siv nyob rau hauv ua ke kom tau raws li cov kev xav tau ntawm kis tau tus mob ntawm pab kiag li lawm rau txawv zaus signals.



Cov ntsiab lus nkoj:
